5 Flexible approach

In the the previous section, we learned a ‘quick approach’ to calculate accessibility directly from within {r5r}. A shortcoming of this approach is that it is limited to only a few predefined accessibility metrics available in {r5r}. Oftentimes, we want to analyze other types of accessibility metrics and/or to have more control of the different steps of the analysis.

In this section, we’ll learn how to calculate travel time matrices and to use them to compute different types of accessibility metrics. This is a more ‘flexible’ approach that combines the capabilities of the {r5r} and the {accessibility} packages. We’ll use again the sample data for the city of Porto Alegre, Brazil, that comes with the {r5r} package.

This flexible approach to calculate accessibility only involves 3 steps:

1. Building a routable transport network
2. Computing a travel time matrix
3. Calculating accessibility

Now let’s start loading the packages we need:

# allocating memory to java
options(java.parameters = "-Xmx6G")

library(r5r)

Warning in fun(libname, pkgname): Java home setting is INVALID, it will be ignored.
Please do NOT set it unless you want to override system settings.

library(accessibility)

Warning: package 'accessibility' was built under R version 4.5.3

library(h3jsr)
library(dplyr)
library(mapview)

Warning: package 'mapview' was built under R version 4.5.2

library(ggplot2)

5.1 Building a routable transport network

First, we build the multimodal transport network by passing the path of our data directory to the r5r::build_network() function.

# path to data directory
data_path <- system.file("extdata/poa", package = "r5r")

# build network
r5r_network <- r5r::build_network(data_path, verbose = FALSE)

5.2 Computing a travel time matrix

The second step is to calculate a travel time matrix with door-to-door travel time estimates from all origins to all destinations. To do this, we use the r5r::travel_time_matrix() function.

As basic inputs, this function receives the routable network created above, origin and destination points as data.frames with columns id, lon and lat, the transportation mode and the departure time.

# read points data
points <- read.csv(file.path(data_path, "poa_hexgrid.csv"))

# routing inputs
mode <- c("walk", "transit")
max_trip_duration <- 30
departure_datetime <- as.POSIXct("13-05-2019 14:00:00",
                                 format = "%d-%m-%Y %H:%M:%S")

# calculate travel time matrix
ttm <- r5r::travel_time_matrix(
  r5r_network = r5r_network,
  origins = points,
  destinations = points,
  mode = mode,
  departure_datetime = departure_datetime,
  max_trip_duration = max_trip_duration,
  progress = TRUE
  )

1

In minutes

Tip

Note that the r5r::travel_time_matrix() includes several additional parameters that allow you to specify some trip characteristics, such as maximum walking time, a departure time window, the maximum number of public transport legs allowed, etc. For more info, check the documentation of the function by calling ?r5r::travel_time_matrix in your R Console or check the documentation on {r5r} website.

The output is a data.frame, which looks like this. It is a matrix in long format with the columns from_id, to_id and a third column indicating the travel time (in minutes) for each origin-destination pair.

head(ttm)

           from_id           to_id travel_time_p50
            <char>          <char>           <int>
1: 89a901291abffff 89a901291abffff               2
2: 89a901291abffff 89a90129157ffff              25
3: 89a901291abffff 89a9012956bffff              29
4: 89a901291abffff 89a90128257ffff              29
5: 89a901291abffff 89a90129ed3ffff              29
6: 89a901291abffff 89a9012913bffff              20

Processing speed

The travel_time_matrix() function uses an extension of the RAPTOR routing algorithm (Conway, Byrd, and van der Linden 2017), making R5 extremely fast. Depending on the number of origin-destination pairs, {r5r} can calculate travel time matrices between 6 and 200 times faster than other multimodal routing engines (Higgins et al. 2022).

5.3 Calculating accessibility

Having computed a travel time matrix, we can combine it with land use data to calculate accessibility. For this, we will use the {accessibility} package, which provides some fast and convenient functions to calculate several accessibility measures.

The package currently includes more than 7 different types of accessibility measures (see details in the package documentation website).

• cost_to_closest(): Minimum travel cost to closest N number of opportunities
• cumulative_cutoff(): Cumulative access based on a travel cost cutoff
• cumulative_interval(): Cumulative access based on a travel time interval
• gravity(): Gravity-based accessibility measures
• floating_catchment_area(): Floating catchment area accessibility
• spatial_availability(): Spatial availability
• balancing_cost(): Balancing cost accessibility measure

As basic inputs, all functions of the package require a pre-calculated cost matrix (in our case, a travel time matrix) and some land use data with the number of opportunities (e.g. schools, jobs) in each cell of the study area. Both inputs must be organized in a data.frame format. We have just seen above the structure of the travel matrix. The land use data.frame must be organized like this:

# land use data
head(points)

1

The land use data must contain an id column, referring to the ids listed in the travel matrix, and the number of opportunities in each location.

               id       lon       lat population schools jobs healthcare
1 89a901291abffff -51.15825 -30.05385          0       0 1214          0
2 89a9012a3cfffff -51.21187 -30.10058        159       0    0          0
3 89a901295b7ffff -51.16521 -30.07544       1008       0    3          1
4 89a901284a3ffff -51.20535 -30.09005         92       0    0          0
5 89a9012809bffff -51.19575 -30.07839        577       0    9          0
6 89a901285cfffff -51.21108 -30.08124       1170       0  427          0

Now let’s calculate a few accessibility indicators.

5.3.1 Cumulative accessibility measure

5.3.1.1 Threshold-based cumulative accessibility

To calculate a traditional cumulative accessibility measure, we can use the accessibility::cumulative_cutoff() function. Along with the travel matrix and land use data sets, we only need to pass the name of the column with the travel time values, the name of the column with the count of opportunities, and a travel time cutoff.

Here, we calculate the number of schools accessible in 20 minutes.

# threshold-based cumulative accessibility
access_cum_t <- accessibility::cumulative_cutoff(
  travel_matrix = ttm,
  land_use_data = points,
  travel_cost = 'travel_time_p50',
  opportunity = 'schools',
  cutoff = 20
  )

head(access_cum_t)

Key: <id>
                id schools
            <char>   <int>
1: 89a9012124fffff       1
2: 89a9012126bffff       3
3: 89a9012127bffff       3
4: 89a90128003ffff       8
5: 89a90128007ffff       6
6: 89a9012800bffff       9

5.3.1.2 Interval-based cumulative accessibility

Previous studies have shown that the ad-hoc choice of a single travel time threshold can substantially influence the results of traditional cumulative accessibility measures, introducing bias into transport project evaluations and equity analyses (Pereira 2019). To overcome this issue, we have proposed a time interval cumulative accessibility measure (Tomasiello et al. 2023). This new metric estimates the average (or the median) number of opportunities that can be reached considering multiple minute-by-minute cutoffs within a given travel time interval.

The main advantage of this metric is that it mitigates the impacts of arbitrary choices of trip duration on accessibility analysis while preserving the computation and communicability advantages of threshold-based cumulative measures.

Here, we calculate the average number of schools that can be reached between 20 and 30 minutes.

# interval-based cumulative accessibility
access_cum_i <- accessibility::cumulative_interval(
  travel_matrix = ttm,
  land_use_data = points,
  travel_cost = 'travel_time_p50',
  opportunity = 'schools',
  interval = c(15, 25),
  summary_function = mean
  )

head(access_cum_i)

                id schools
            <char>   <int>
1: 89a9012124fffff       1
2: 89a9012126bffff       4
3: 89a9012127bffff       4
4: 89a90128003ffff       7
5: 89a90128007ffff       7
6: 89a9012800bffff       9

5.3.2 Gravity-based accessibility measures

The package also includes accessibility::gravity() to calculate gravity-based accessibility metrics in a very flexible way.

It includes a decay_function parameter that can receive any function to convert travel cost into an impedance factor used to weight opportunities. For convenience, the package currently includes the following functions:

• decay_binary()
• decay_exponential()
• decay_linear()
• decay_logistic()
• decay_power()
• decay_stepped()

Let’s see a couple examples with logistic and negative exponential decay functions:

# logistic decay
access_lgst <- accessibility::gravity(
  travel_matrix = ttm,
  land_use_data = points,
  decay_function = decay_logistic(cutoff = 15, sd = 5),
  opportunity = "schools",
  travel_cost = "travel_time_p50"
)

# negative exponential decay
access_nexp <- accessibility::gravity(
  travel_matrix = ttm,
  land_use_data = points,
  decay_function = decay_exponential(decay_value = 0.1),
  opportunity = "schools",
  travel_cost = "travel_time_p50"
)

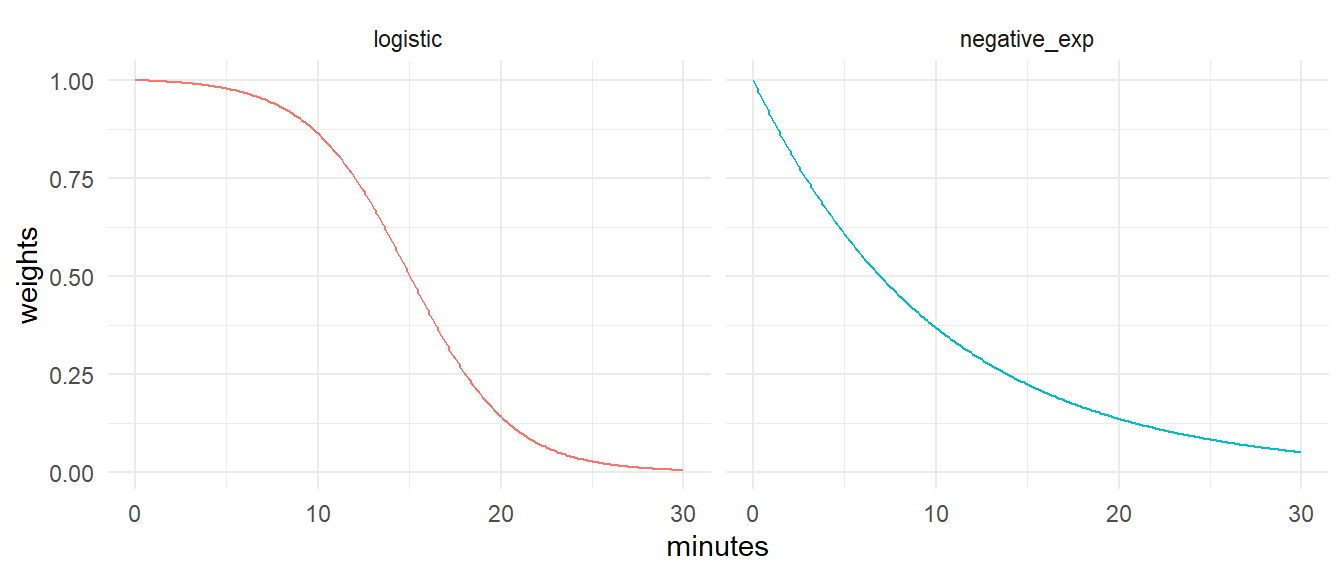

Here’s a quick visualization of the shape of the decay curves we’ve used.

negative_exp <- accessibility::decay_exponential(decay_value = 0.1)
logistic <- accessibility::decay_logistic(cutoff = 15, sd = 5)

travel_costs <- seq(0, 30, 0.1)

weights <- data.frame(
  minutes = travel_costs,
  negative_exp = negative_exp(travel_costs)[["0.1"]],
  logistic = logistic(travel_costs)[["c15;sd5"]]
)

# reshape data to long format
weights <- tidyr::pivot_longer(
  weights,
  cols = c('negative_exp',  'logistic'),
  names_to = "decay_function",
  values_to = "weights"
)

ggplot(weights) +
  geom_line(aes(minutes, weights, color = decay_function),
            show.legend = FALSE) +
  facet_wrap(. ~ decay_function, ncol = 2) +
  theme_minimal()

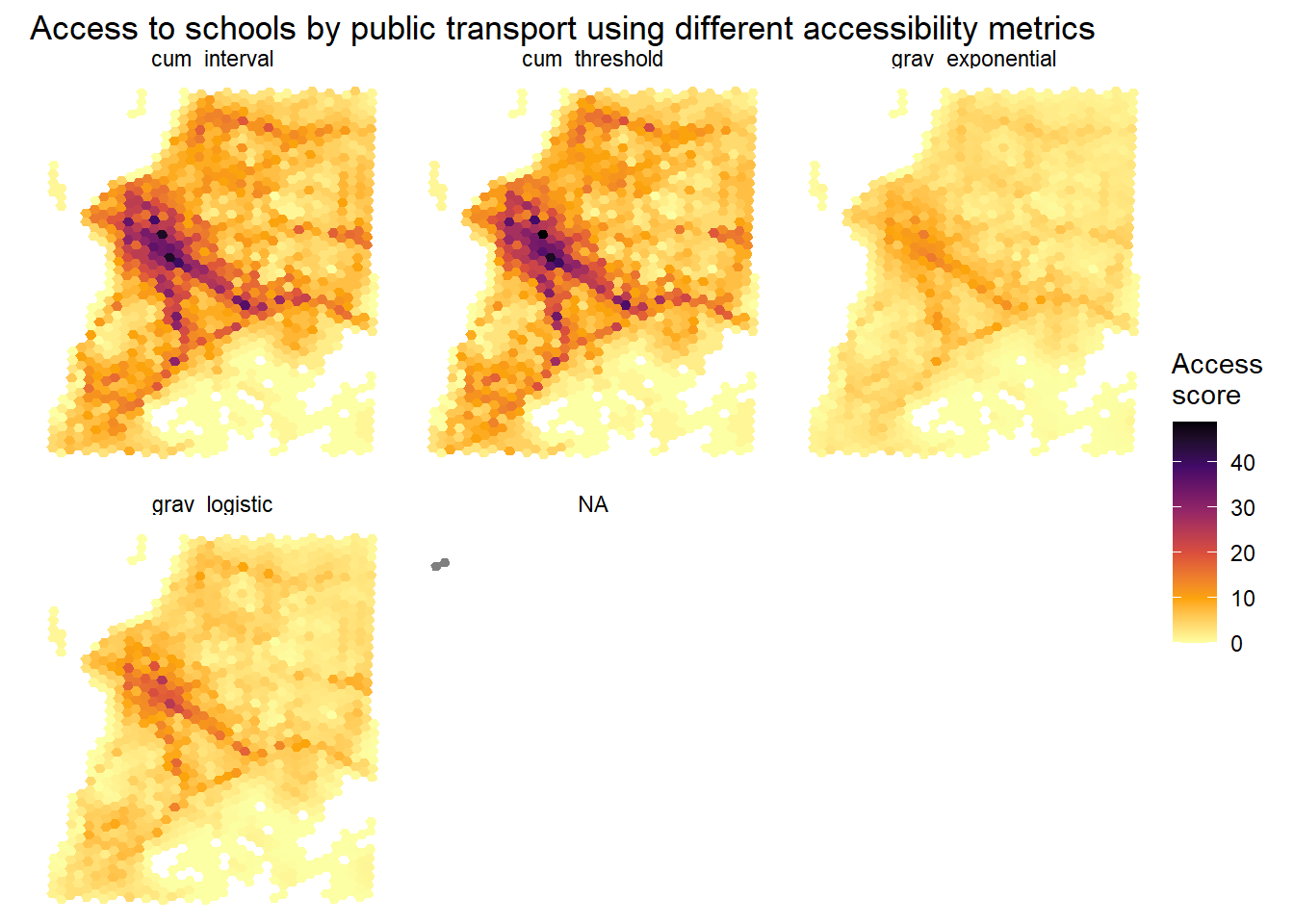

5.4 Accessibility map

Now it is super simple to merge all of these accessibility estimates to our spatial grid to visualize these results on a map.

# rbind all accessibility results in a single data.frame
access_cum_t$metric <- 'cum_threshold'
access_cum_i$metric <- 'cum_interval'
access_lgst$metric <- 'grav_logistic'
access_nexp$metric <- 'grav_exponential'

df <- rbind(access_cum_t,
            access_cum_i,
            access_lgst,
            access_nexp
            )

# retrieve polygons of H3 spatial grid
grid <- h3jsr::cell_to_polygon(
  input = points$id,
  simple = FALSE
  )

# merge accessibility estimates
access_sf <- left_join(
  x = grid,
  y = df,
  by = c('h3_address'='id')
  )

Plot map

ggplot() +
  geom_sf(data = access_sf, aes(fill = schools), color= NA) +
  scale_fill_viridis_c(direction = -1, option = 'B') +
  labs(title = "Access to schools by public transport using different accessibility metrics", fill = "Access\nscore") +
  theme_minimal() +
  theme(axis.title = element_blank()) +
  facet_wrap(~metric) +
  theme_void()

The {r5r} package has several advanced capabilities:

• Accounting for monetary costs
• Accounting for Level of Traffic Stress (LTS)
• Using a departure window period instead of an exact departure time
• Trip planning with detailed ouputs
• Calculating isochrones
• Generating larger-than-memory outputs

See the package vignettes on the website fore more info.
