Check transit service availability by date

Source: R/check_transit_availability.R
check_transit_availability.Rd

Counts the public transport services in the GTFS feeds of a r5r_network that are active on given dates, and their proportion of all services. Use it to pick a departure date with adequate service: public transport routing only finds trips on dates when services run (per the GTFS calendar.txt).

Usage

check_transit_availability(
  r5r_network,
  dates = NULL,
  start_date = NULL,
  end_date = NULL,
  r5r_core = deprecated()
)

Arguments

r5r_network

A routable transport network created with build_network().

dates

A vector of specific dates to be checked. Can be character strings in "YYYY-MM-DD" format, or objects of class Date. This argument cannot be used with start_date or end_date.

start_date

The start date for a continuous date range. Must be a single character string in "YYYY-MM-DD" format or a Date object. Must be used with end_date.

end_date

The end date for a continuous date range. Must be a single character string in "YYYY-MM-DD" format or a Date object. Must be used with start_date.

r5r_core

The r5r_core argument is deprecated as of r5r v2.3.0. Use the r5r_network argument instead.

Value

A data.table with four columns: date, total_services, active_services, and pct_active (the proportion of active services).

Details

You can specify the dates to check in two ways:

  • Using the dates argument to provide a vector of specific dates.

  • Using the start_date and end_date arguments to provide a continuous date range.

You must use one of these two methods, but not both in the same function call.

Examples

library(r5r)
data_path <- system.file("extdata/poa", package = "r5r")
r5r_network <- build_network(data_path)
#> Using cached R5 version from /home/runner/.cache/R/r5r/r5_jar_v7.5.1/r5-v7.5-1-gf3631e9-all.jar
#> ℹ Using cached network from
#>   /home/runner/work/_temp/Library/r5r/extdata/poa/network.dat.

# Example 1: Check a vector of specific dates
# Let's check a regular weekday and a Sunday, where service may differ.
dates_to_check <- c("2019-05-13", "2019-05-19")
availability1 <- check_transit_availability(r5r_network, dates = dates_to_check)
availability1
#>          date total_services active_services  pct_active
#>        <Date>          <int>           <int>       <num>
#> 1: 2019-05-13            118             116 0.983050847
#> 2: 2019-05-19            118               1 0.008474576

# Example 2: Check a continuous date range using start_date and end_date
availability2 <- check_transit_availability(
  r5r_network,
  start_date = "2019-01-01",
  end_date = "2019-12-31"
)
availability2[121:124,]
#>          date total_services active_services  pct_active
#>        <Date>          <int>           <int>       <num>
#> 1: 2019-05-01            118              62 0.525423729
#> 2: 2019-05-02            118             116 0.983050847
#> 3: 2019-05-03            118             116 0.983050847
#> 4: 2019-05-04            118               1 0.008474576

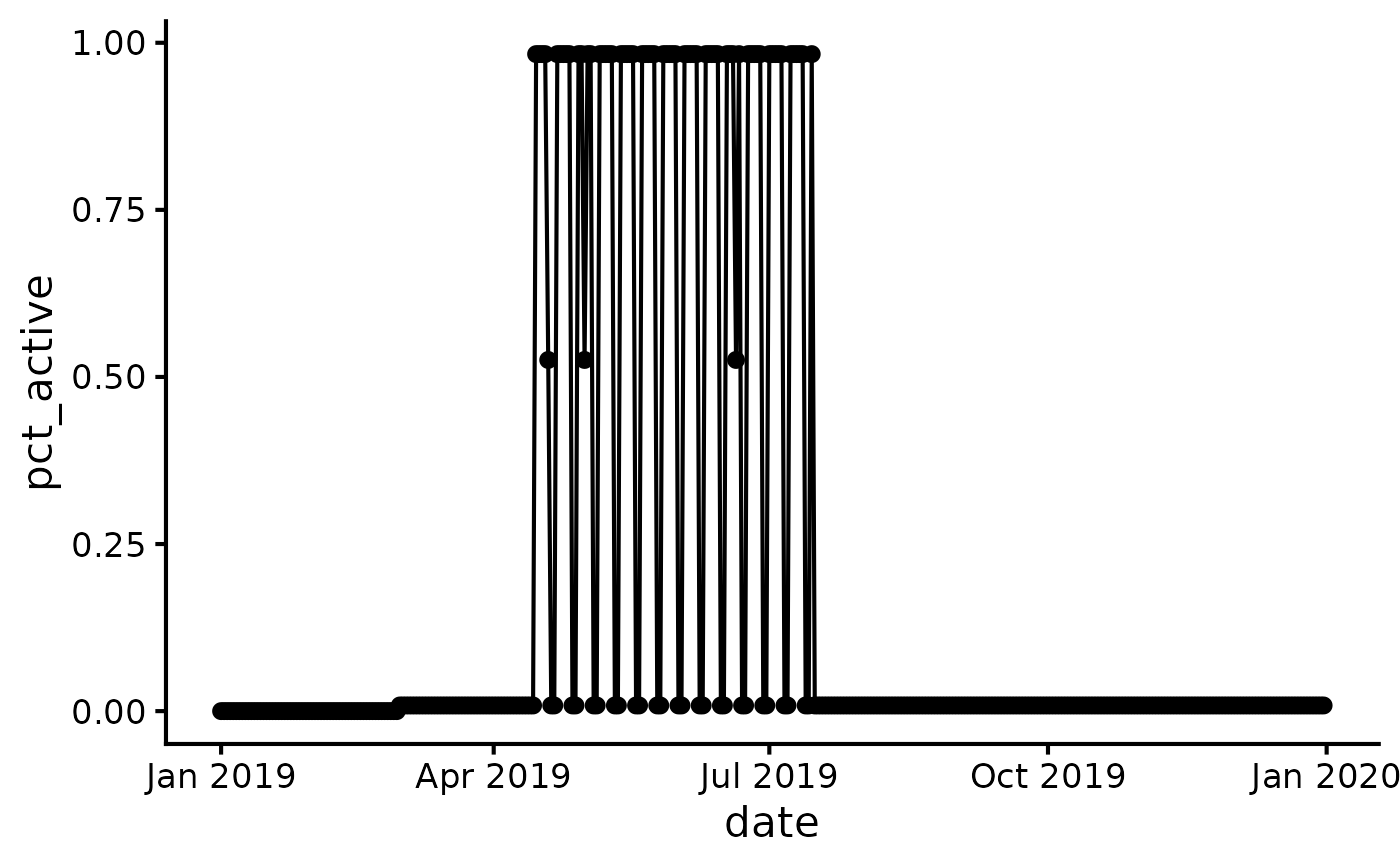

# plot availability over the year
library(ggplot2)
ggplot(availability2, aes(x = date, y = pct_active)) +
  geom_line() +
  geom_point() +
  theme_classic(base_size = 16)


stop_r5(r5r_network)
#> r5r_network has been successfully stopped.
