Estimate isochrones from a given location

Source: R/isochrone.R
isochrone.Rd

Fast computation of isochrones from a given location. The function can return either polygon-based or line-based isochrones. Polygon-based isochrones are generated from a travel time surface: travel times from each origin to the centres of a regular grid of Web Mercator pixels (see zoom), from which the isochrone polygons are interpolated with the marching squares algorithm. Line-based isochrones are based on travel times from each origin to the centroids of all segments in the transport network.

Usage

isochrone(
  r5r_network,
  origins,
  mode = "transit",
  mode_egress = "walk",
  cutoffs = c(0, 15, 30),
  zoom = 10,
  departure_datetime = Sys.time(),
  polygon_output = TRUE,
  time_window = 10L,
  max_walk_time = Inf,
  max_bike_time = Inf,
  max_car_time = Inf,
  max_trip_duration = 120L,
  walk_speed = 3.6,
  bike_speed = 12,
  max_rides = 3,
  max_lts = 2,
  draws_per_minute = 5L,
  percentiles = NULL,
  n_threads = Inf,
  verbose = FALSE,
  progress = TRUE,
  sample_size = deprecated(),
  r5r_core = deprecated()
)

Arguments

r5r_network

A routable transport network created with build_network().

origins

Either a POINT sf object with WGS84 CRS, or a data.frame containing the columns id, lon and lat.

mode

A character vector. The transport modes allowed for access, transfer and vehicle legs of the trips. Defaults to TRANSIT. See details for other options.

mode_egress

A character vector. The transport mode used after egress from the last public transport. It can be either WALK, BICYCLE or CAR. Defaults to WALK. Ignored when public transport is not used.

cutoffs

A numeric vector. The travel times, in minutes, that delimit the isochrones. Defaults to c(0, 15, 30). Values are sorted and duplicates are removed; at least one value must be greater than 0.

zoom

A number between 9 and 12. The Web Mercator zoom level of the travel time grid from which polygon isochrones are interpolated (only used when polygon_output = TRUE). Higher values give more detailed isochrones but take longer to compute. Defaults to 10 (cells of about 153 meters at the Equator). For how grid cells are defined, see the R5 documentation.

departure_datetime

A POSIXct object. Only affects public transport legs; when routing with public transport, it must fall within the service period of the GTFS feeds (calendar.txt; see check_transit_availability()). Defaults to Sys.time(). See details for how datetimes are parsed.

polygon_output

A Logical. If TRUE, the function outputs polygon-based isochrones (the default) based on travel times from each origin to a regular grid of points (see parameter zoom). If FALSE, the function outputs line-based isochrones based on travel times from each origin to the centroids of all segments in the transport network.

time_window

An integer. The time window in minutes. Departures are simulated every minute from departure_datetime until time_window minutes later, and travel times are summarized over these departures using percentiles (the median by default). Defaults to 10. See vignette("time_window", package = "r5r").

max_walk_time

An integer. The maximum walking time (in minutes) to access and egress the transit network, make transfers, or complete walk-only trips. Applies to each leg separately (e.g. 15 allows up to 15 minutes to reach transit and another 15 after leaving it). Defaults to Inf (no limit besides max_trip_duration). In walk-only trips, the lower of max_walk_time and max_trip_duration applies.

max_bike_time

An integer. The maximum cycling time (in minutes) to access and egress the transit network, make transfers, or complete bicycle-only trips. Applies to each leg separately (e.g. 15 allows up to 15 minutes to reach transit and another 15 after leaving it). Defaults to Inf (no limit besides max_trip_duration). In bicycle-only trips, the lower of max_bike_time and max_trip_duration applies.

max_car_time

An integer. The maximum driving time (in minutes) to access and egress the transit network, or to complete car-only trips. Applies to each leg separately (e.g. 15 allows up to 15 minutes to reach transit and another 15 after leaving it). Defaults to Inf (no limit besides max_trip_duration). In car-only trips, the lower of max_car_time and max_trip_duration applies.

max_trip_duration

Ignored. The maximum trip duration is set internally from max(cutoffs).

walk_speed

A numeric. Average walk speed in km/h. Defaults to 3.6.

bike_speed

A numeric. Average cycling speed in km/h. Defaults to 12.

max_rides

An integer. The maximum number of public transport rides allowed in the same trip. Defaults to 3.

max_lts

An integer between 1 and 4. The maximum level of traffic stress that cyclists will tolerate. A value of 1 means cyclists will only travel through the quietest streets, while a value of 4 indicates cyclists can travel through any road. Defaults to 2. See details.

draws_per_minute

An integer. The number of Monte Carlo draws to perform per minute of time_window. Defaults to 5. This would mean 300 draws in a 60-minute time window, for example. This parameter only affects the results when the GTFS feeds contain a frequencies.txt table. If the GTFS feed does not have a frequency table, r5r still allows for multiple runs over the set time_window but in a deterministic way.

percentiles

An integer vector (max length of 5). The travel time percentiles within time_window used to build the isochrones, one set of polygons per percentile. Defaults to 50 (the median travel time). Only used when polygon_output = TRUE; must be NULL for line-based isochrones.

n_threads

An integer. The number of threads to use when running the router in parallel. Defaults to Inf (all available threads).

verbose

A logical. Whether to show R5 informative messages when running the function. Defaults to FALSE (R5 error messages are still shown). TRUE shows detailed output, useful for debugging issues not caught by r5r.

progress

A logical. Whether to show a progress counter when running the router. Defaults to TRUE. Only works when verbose is FALSE. May slightly slow computation, as the counter is synchronized across threads.

sample_size

deprecated, no longer has any effect.

r5r_core

The r5r_core argument is deprecated as of r5r v2.3.0. Use the r5r_network argument instead.

Value

A "sf" "data.frame". With polygon_output = TRUE, one POLYGON or MULTIPOLYGON per origin, percentile and cutoff, with columns id (origin id), isochrone (cutoff in minutes), percentile (a string such as "p50") and polygons. Each polygon covers the whole area reached from 0 up to its cutoff, so polygons of larger cutoffs contain those of smaller ones. With polygon_output = FALSE, one LINESTRING per street segment reached, with columns id (origin id), edge_index, osm_id, isochrone (the smallest cutoff at or above the segment's travel time, i.e. bands are intervals), travel_time_p50 and geometry.

Transport modes

R5 allows for multiple combinations of transport modes. The options include:

  • Transit modes: TRAM, SUBWAY, RAIL, BUS, FERRY, CABLE_CAR, GONDOLA, FUNICULAR. The option TRANSIT automatically considers all public transport modes available.

  • Non transit modes: WALK, BICYCLE, CAR.

Level of Traffic Stress (LTS)

When cycling is enabled in R5 (by passing the value BICYCLE to either mode or mode_egress), setting max_lts will allow cycling only on streets with a given level of danger/stress. Setting max_lts to 1, for example, will allow cycling only on separated bicycle infrastructure or low-traffic streets and routing will revert to walking when traversing any links with LTS exceeding 1. Setting max_lts to 3 will allow cycling on links with LTS 1, 2 or 3. Routing also reverts to walking if the street segment is tagged as non-bikable in OSM (e.g. a staircase), independently of the specified max LTS.

The default methodology for assigning LTS values to network edges is based on commonly tagged attributes of OSM ways. See more info about LTS in the original documentation of R5 from Conveyal at https://docs.conveyal.com/learn-more/traffic-stress. In summary:

  • LTS 1: Tolerable for children. This includes low-speed, low-volume streets, as well as those with separated bicycle facilities (such as parking-protected lanes or cycle tracks).

  • LTS 2: Tolerable for the mainstream adult population. This includes streets where cyclists have dedicated lanes and only have to interact with traffic at formal crossing.

  • LTS 3: Tolerable for "enthused and confident" cyclists. This includes streets which may involve close proximity to moderate- or high-speed vehicular traffic.

  • LTS 4: Tolerable only for "strong and fearless" cyclists. This includes streets where cyclists are required to mix with moderate- to high-speed vehicular traffic.

For advanced users, you can provide custom LTS values by adding a tag <key = "lts"> to the osm.pbf file.

Datetime parsing

r5r ignores the timezone attribute of datetime objects when parsing dates and times, using the study area's timezone instead. For example, let's say you are running some calculations using Rio de Janeiro, Brazil, as your study area. The datetime as.POSIXct("13-05-2019 14:00:00", format = "%d-%m-%Y %H:%M:%S") will be parsed as May 13th, 2019, 14:00h in Rio's local time, as expected. But as.POSIXct("13-05-2019 14:00:00", format = "%d-%m-%Y %H:%M:%S", tz = "Europe/Paris") will also be parsed as the exact same date and time in Rio's local time, perhaps surprisingly, ignoring the timezone attribute.

Routing algorithm

The travel_time_matrix(), expanded_travel_time_matrix(), arrival_travel_time_matrix() and accessibility() functions use an R5-specific extension to the RAPTOR routing algorithm (see Conway et al., 2017). This RAPTOR extension uses a systematic sample of one departure per minute over the time window set by the user in the 'time_window' parameter. A detailed description of base RAPTOR can be found in Delling et al (2015). However, whenever the user includes transit fares inputs to these functions, they automatically switch to use an R5-specific extension to the McRAPTOR routing algorithm.

  • Conway, M. W., Byrd, A., & van der Linden, M. (2017). Evidence-based transit and land use sketch planning using interactive accessibility methods on combined schedule and headway-based networks. Transportation Research Record, 2653(1), 45-53. doi:10.3141/2653-06

  • Delling, D., Pajor, T., & Werneck, R. F. (2015). Round-based public transit routing. Transportation Science, 49(3), 591-604. doi:10.1287/trsc.2014.0534

Examples

options(java.parameters = "-Xmx2G")
library(r5r)
library(ggplot2)

# build transport network
data_path <- system.file("extdata/poa", package = "r5r")
r5r_network <- build_network(data_path = data_path)
#> Using cached R5 version from /home/runner/.cache/R/r5r/r5_jar_v7.5.1/r5-v7.5-1-gf3631e9-all.jar
#> ℹ Using cached network from
#>   /home/runner/work/_temp/Library/r5r/extdata/poa/network.dat.

# load origin/point of interest
points <- read.csv(file.path(data_path, "poa_points_of_interest.csv"))
origin <- points[2,]

departure_datetime <- as.POSIXct(
 "13-05-2019 14:00:00",
 format = "%d-%m-%Y %H:%M:%S"
)

# estimate polygon-based isochrone from origin
iso_poly <- isochrone(
  r5r_network,
  origins = origin,
  mode = "walk",
  polygon_output = TRUE,
  departure_datetime = departure_datetime,
  cutoffs = seq(0, 120, 30)
  )

head(iso_poly)
#> Simple feature collection with 4 features and 3 fields
#> Geometry type: POLYGON
#> Dimension:     XY
#> Bounding box:  xmin: -51.25603 ymin: -30.0783 xmax: -51.16081 ymax: -29.99003
#> Geodetic CRS:  WGS 84
#>                    id isochrone percentile                       polygons
#> 1 bus_central_station       120        p50 POLYGON ((-51.21071 -30.076...
#> 2 bus_central_station        90        p50 POLYGON ((-51.2114 -30.0637...
#> 3 bus_central_station        60        p50 POLYGON ((-51.21071 -30.048...
#> 4 bus_central_station        30        p50 POLYGON ((-51.21346 -30.035...


# estimate line-based isochrone from origin
iso_lines <- isochrone(
  r5r_network,
  origins = origin,
  mode = "walk",
  polygon_output = FALSE,
  departure_datetime = departure_datetime,
  cutoffs = seq(0, 100, 25)
  )

head(iso_lines)
#> Simple feature collection with 6 features and 14 fields
#> Geometry type: LINESTRING
#> Dimension:     XY
#> Bounding box:  xmin: -51.18467 ymin: -30.05426 xmax: -51.17266 ymax: -30.02355
#> Geodetic CRS:  WGS 84
#>                    id edge_index   osm_id isochrone travel_time_p50 from_vertex
#> 1 bus_central_station        644 27238056       100             100         443
#> 2 bus_central_station        645 27238056       100             100         444
#> 3 bus_central_station       1048 27370379       100             100         717
#> 4 bus_central_station       1049 27370379       100             100         718
#> 5 bus_central_station       1058 27370382       100             100         722
#> 6 bus_central_station       1059 27370382       100             100         723
#>   to_vertex street_class  length walk   car car_speed bicycle bicycle_lts
#> 1       444     TERTIARY  78.580 TRUE  TRUE    39.996    TRUE           2
#> 2       443     TERTIARY  78.580 TRUE FALSE    39.996   FALSE           2
#> 3       718        OTHER 242.560 TRUE  TRUE    40.248    TRUE           4
#> 4       717        OTHER 242.560 TRUE  TRUE    40.248    TRUE           4
#> 5       723        OTHER  85.916 TRUE  TRUE    40.248    TRUE           2
#> 6       722        OTHER  85.916 TRUE  TRUE    40.248    TRUE           2
#>                         geometry
#> 1 LINESTRING (-51.17282 -30.0...
#> 2 LINESTRING (-51.17266 -30.0...
#> 3 LINESTRING (-51.18231 -30.0...
#> 4 LINESTRING (-51.18467 -30.0...
#> 5 LINESTRING (-51.18424 -30.0...
#> 6 LINESTRING (-51.1839 -30.05...


# plot colors
colors <- c('#ffe0a5','#ffcb69','#ffa600','#ff7c43','#f95d6a',
            '#d45087','#a05195','#665191','#2f4b7c','#003f5c')

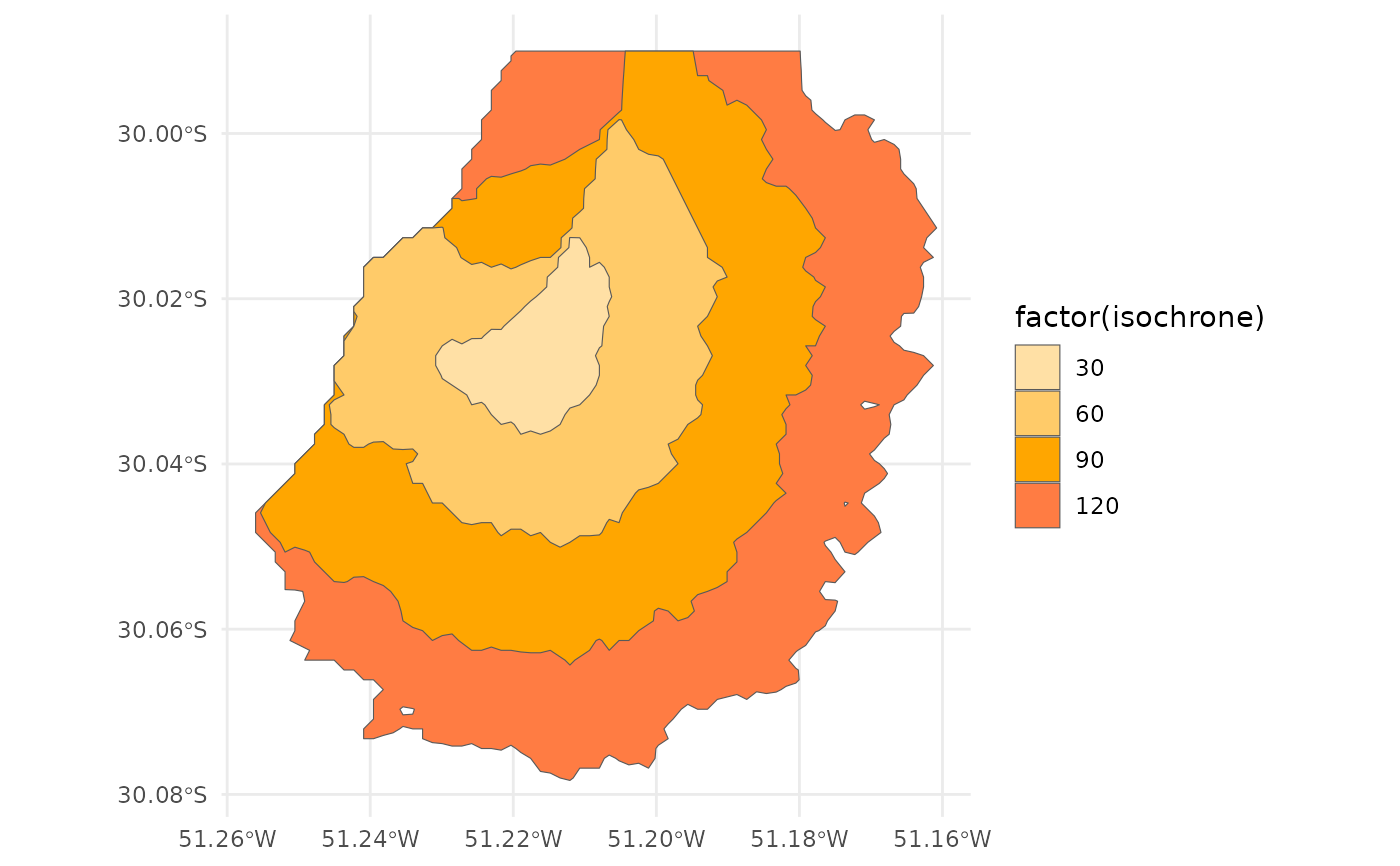

# polygons
ggplot() +
  geom_sf(data=iso_poly, aes(fill=factor(isochrone))) +
  scale_fill_manual(values = colors) +
  theme_minimal()

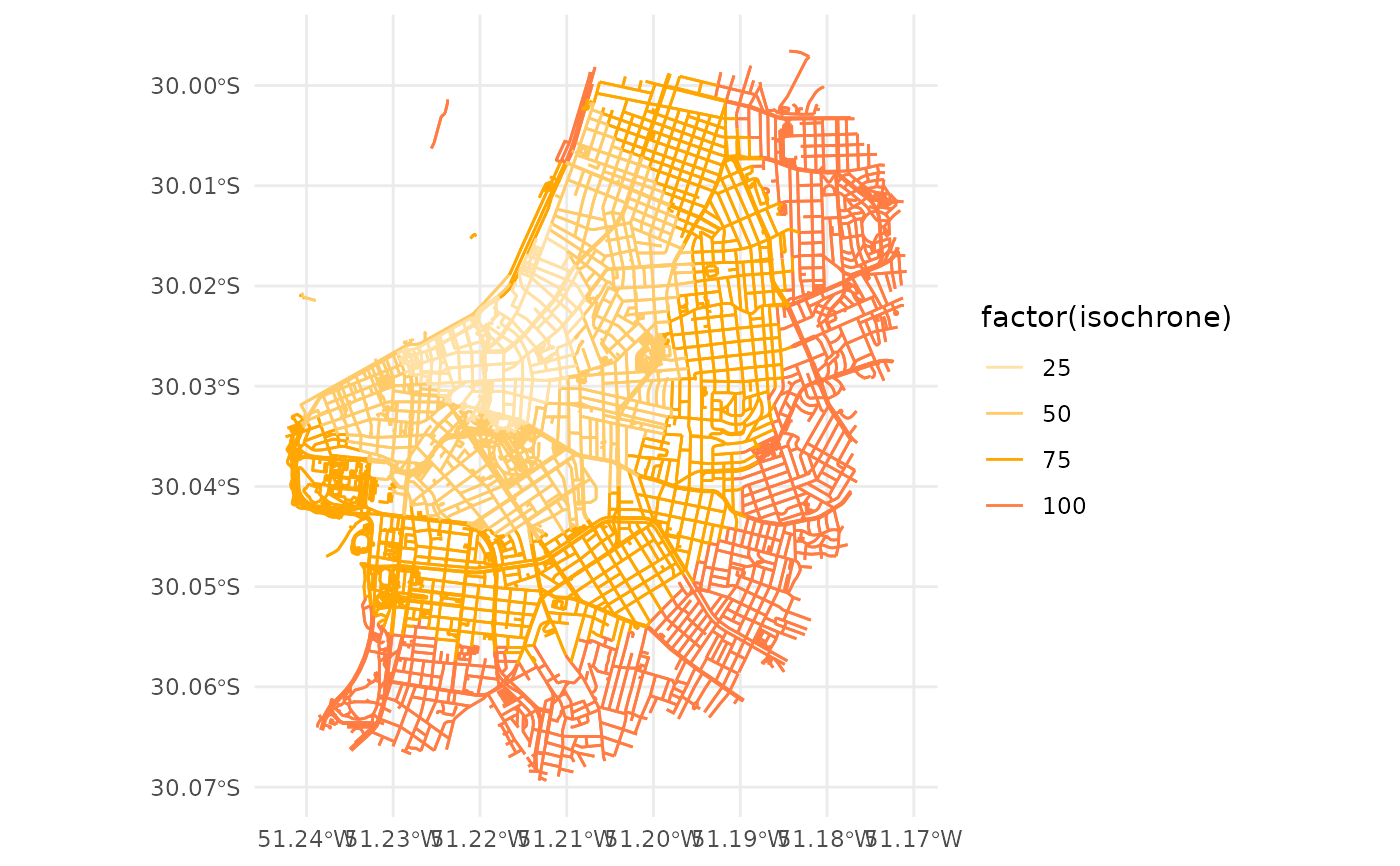

# lines
ggplot() +
  geom_sf(data=iso_lines, aes(color=factor(isochrone))) +
  scale_color_manual(values = colors) +
  theme_minimal()


stop_r5(r5r_network)
#> r5r_network has been successfully stopped.
